TAKE UP for sulzer Projectile-FOBTEX

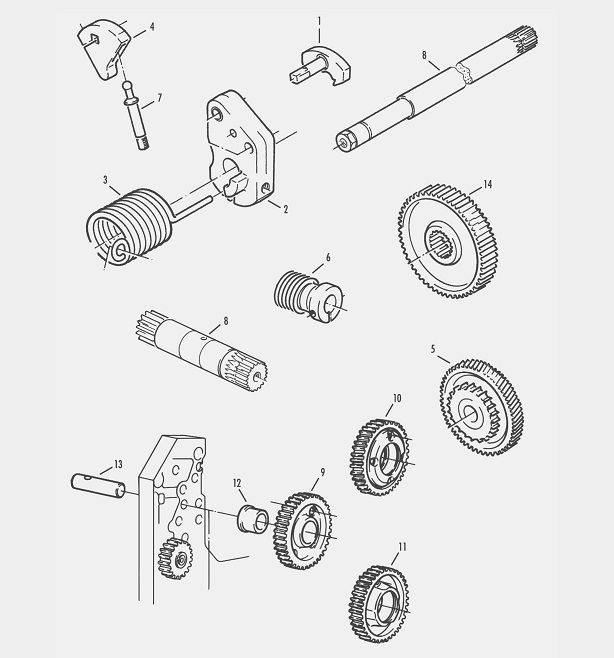

Sulzer Projectile Parts->TAKE UP -A

Pos.	FOBTEX No.	Parts Code	Description
1	1278	911110268	RATCHET 1:60
1	1279	911310243	RATCHET 2:60,4:60,8:55 911110246
2	1280	911110250	RATCHET SUPPORT
3	1281	911210131	TORSION SPRING 5/60.5X47
4	1282	911110235	GEAR LEVER

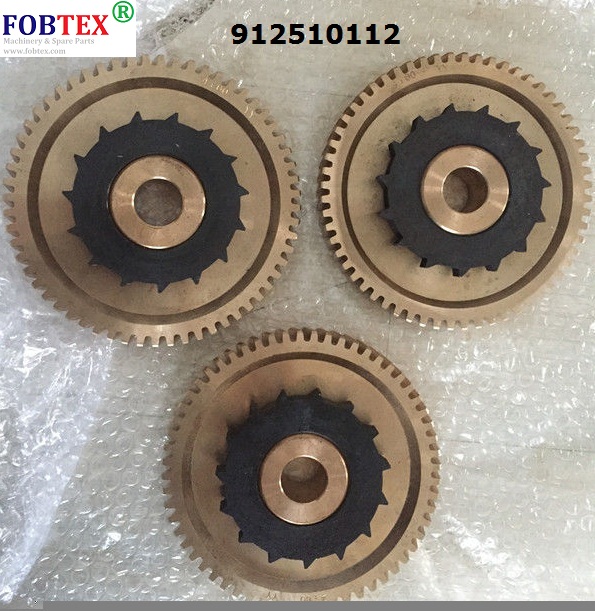

5	1283	912510112	GLOBOLD WORM WHEEL 2:60
5	1284	912510111	GLOBOLD WORM WHEEL 4:60
5	1285	911110242	WORM WHEEL 4:60
5	1286	911510113	WORM WHEEL 1:60
5	1287	912510114	WORM WHEEL 8:55
6	1288	911110337	WORM 4:60
6	1289	912510115	WORM 1:60
6	1290	912510116	WORM 2:60

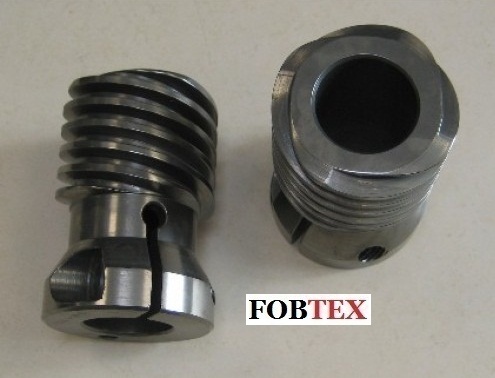

6	1291	912510117	WORM 4:60
6	1292	911110338	WORM 8;55
7	1293	911110238	RESITING BOLT
8	1294	911110341	PINION SHAFT Z=10,MODUL3.5
8	1295	911110176	SPLINET SHAF-PU
8	1296	911310218	SPLINED SHAFT FOR WSA TAPE-UP DRIVE FINE L=416.6 WSA
8	1297	912311078	SET SPLINED SHAFT L=420.5
9	1298	912511039	SPUR WHEEL Z=48,MODUL 4
10	1299	911811053	GEAR WHEEL HELLICAL GEARING Z=48S
11	1300	911311762	SPUR WHEEL Z=48
12	1301	911211164	BUSH 35/45X42
13	1302	911311532	STUD
14	1303	911310169	SPUR WHEEL Z=49R
