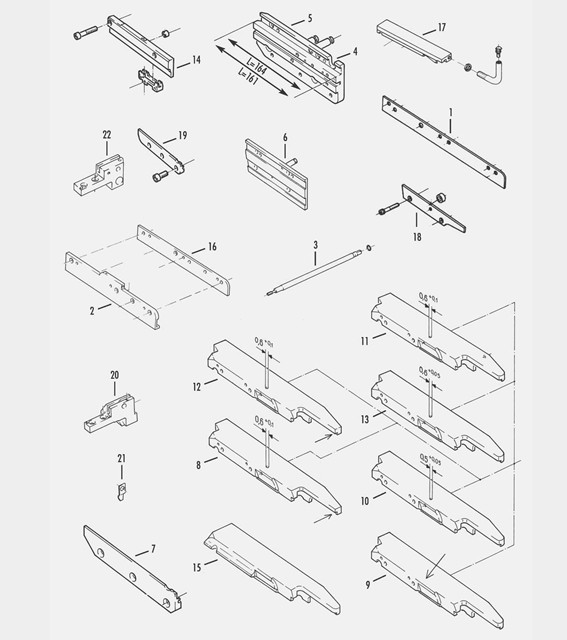

Sulzer Projectile Parts->Projectile Feeder Picking Slides |
|||
|---|---|---|---|
|
|||
Pos. |
FOBTEX No. |
Parts Code |
Description |
| 1 | 987 |
911316128 | PROJECTILE FEEDER GUIDE RAIL REAR MS,D1,D2 911116151 |
| 2 | 988 |
911316402 | SET GUIDE RAIL FRONT/RAER |
| 3 | 989 |
911116232 | SPECIAL SCREW M6 L=293MM 911216112 |
| 4 | 990 |
911416058 | CENTERING RAIL L=161,D1,D12,D2,P7100 |
| 5 | 991 |
911416164 | CENTERING RAIL L=164,D1,D12,D2,V91 |
| 6 | 992 |
911716009 | CENTERING PLATE AIR CURTAIN MS |
| 7 | 993 |
740915000 | PICKING GUIDE RAIL L=173.5 D1,D12,D2,P7150 |
| 8 | 994 |
911816118 | UPPER GUIDE RAIL FOR ADDITIONAL LUBRICATING L=213.5,D1,D12 |
| 9 | 995 |
911416188 | UPPER GUIDE FOR CADENCE LUBRICATION LUBRICATION L=213 D1,D12 911816123 |
| 10 | 996 |

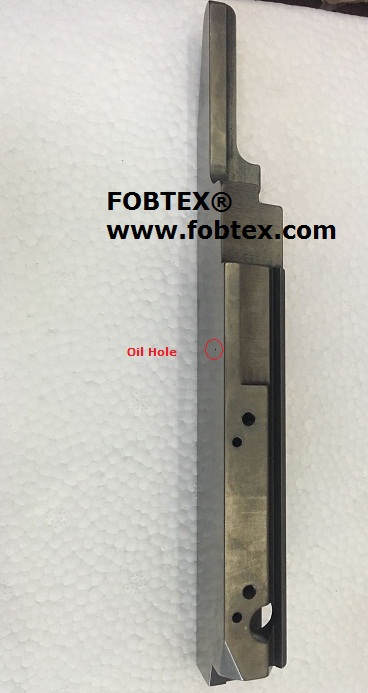

911416255 | UPPER GUIDE RAIL L=213.5,D1,D12,GS 911816122 |
| 11 | 997 |
911316915 | UPPER GUIDE RAIL L=210.5,D1 |
| 12 | 998 |
911316834 | UPPER GUIDE RAIL MS,D2 |
| 13 | 999 |
742246000 | UPPER GUIDE RAIL FOR ADDITIONAL LUBRICATING 2Q,4,6,D2 |
| 13 | 1000 |
740739000 | UPPER GUIDE RAIL D1,D12 |
| 13 | 1001 |
740954000 | UPPER GUIDE RAPIL D2 |
| 14 | 1002 |
911416055 | PROJECTILE FEEDER GUIDE RAIL REAR D1,D12,D2,V91 |
| 15 | 1003 |
911316172 | SET GUIDE RAIL UPPER MS,D1,D12 |
| 16 | 1004 |
911316444 | PROJECTILE FEEDER GUIDE RAIL REAR 1-1,2,4 |
| 17 | 1005 |
911116161 | UPPER GUIDE RAIL FOR ADDITIONAL LUBRICATING |
| 18 | 1006 |
911316268 | SL GUIDE RAIL 9111161194 |
| 19 | 1007 |
911316907 | PICKING GUIDE RAIL L=161,D1,D2 |
| 20 | 1008 |
911316324 | FRONT PICKING BLOCK |
| 21 | 1009 |
911316236 | FLAT SPRING L=40.6 |
| 22 | 1010 |
740925000 | REAR PICKING BLOCK 1,D1 |
