Sulzer Projectile Parts-> Projectile Feeder MS D1 D2 D12

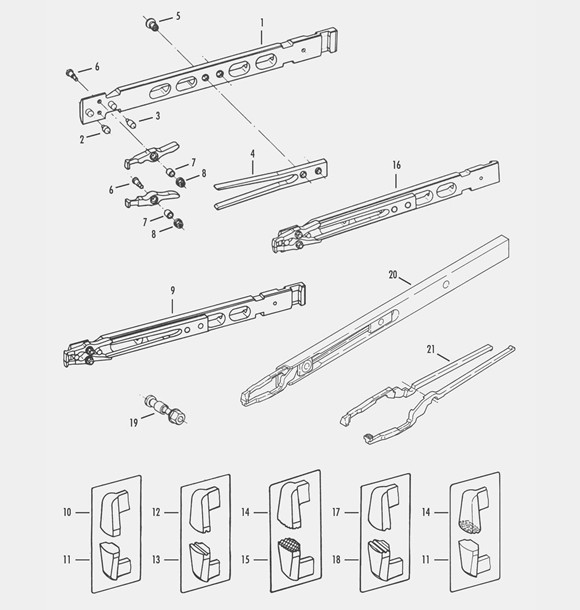

Projectile Feeder MS D1 D2 D12

Pos.
FOBTEX No.
Parts Code
Description
1
921
911819057 PROJECTILE FEEDER RH-BAR MS,D1
2
922
911219233 STOP RIVET 2.5/4.5X4.1
3
923
911319009 STOP RIVET LONG 2.5/4.0X5.9
4
924NQ25
911319285 FEEDER GRIPPER SRPING L=11
4 924ANQ25 911119235 FEEDER GRIPPER SPRING L=9
5
925
911219183 CENTERING SCREW M5X0.5X4.8,SW2.5
6
926
911319238 SPECIAL SCREW M2.6X0.35,L=6.8 RH
7
927
911319247 HARD METAL BUSH 2.8/4X2.56
8
928
911319239 SPECIAL NUT M2.6X0.35X1.95,SW
9
929LQ200

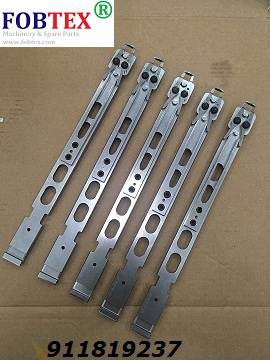

911819201 PROJECTILE FEEDER SMOOTH 1.5X3 D1 911819236 911819237
9
930
911819202 PROJECTILE FEEDER WITH GROOVE 1.5X3 D1 911819234-911819245
9
931
911819239 PROJECTILE FEEDER LEFT/RIGHT KNURLED 1.5X3 ,D1
10
932
911319753 UPPER GRIPPER SMOOTH 3X3.7 MS,D12,D2
10
933NQ12-6
911319287 UPPER GRIPPER SMOOTH MS,D1
11
934
911319752 LOWER GRIPPER SMOOTH MS,3X3.7,D12,D2
11
935NQ12-6
911319286 LOWER GRIPPER SMOOTH MS,D1
12
936NQ12-6
911319289 UPPER GRIPPER WITH GROOVE MS,D1
13
937NQ12-6
911319288 LOWER GRIPPER WITH GROOVE D1
14
938
911319474 UPPER GRIPPER LEFT/RIGHT KNURLED 3X3.7 MS,D12,D2 911319759
14
939
911319792 UPPER GRIPPER LEFT/RIGHT KNURLED MS,D1
15
940
911319475 LOWER GRIPPER LEFT/RIGHT KNURLED 3X3.7 MS,D12,D2 911319758
15
941
911319793 LOWER GRIPPER LEFT/RIGHT KNURLED 1.5X3 MS,D1
16
942
911819142 PROJECTILE FEEDER with Groove 3X3.7 D12,D2
16
943
911819143 PROJECTILE FEEDER GROOVED 3X3.7 D12,D2
16
944
911819336 PROJECTILE FEEDER LEFT/RIGHT KNURLED 3X3.7 D12,D2
16
945
911819037 PROJECTILE FEEDER SMOOTH 3X3.7 MW2,ZSD2,ZSM2,SSD,D2
16
946
911819145 PROJECTILE FEEDER LEFT/RIGHT KNURLED 3X3.7 MS,D12,D2
17
947
911319325 UPPER GRIPPER GROOVED 3.7X3 MS,D12,D2 911319777
17
947-A
911319323 UPPER GRIPPER GROOVED MS,D1
18
948-A
911319324 LOWER GRIPPER GROOVED MS,D1
18
948
911319324 LOWER GRIPPER GROOVED 3.7X3 MS,D12,D2
19
949
911819124 SPECIAL SCREW M2.6X0.35,L=6.8 RH,WITH BUSH COMPLETE
20
950
270007890 PROJECTILE FEEDER SMOOTH LEFT/RIGHT KNURLED D12,HP
21
951
270007019 GRIPPER PAIR SMOOTH KNURLED D12,HP
