FOBTEX® Projectile Loom Parts Projectile Feeder ES D1 D12 D2

Sulzer Projectile Parts-> Projectile Feeder ES D1 D12 D2

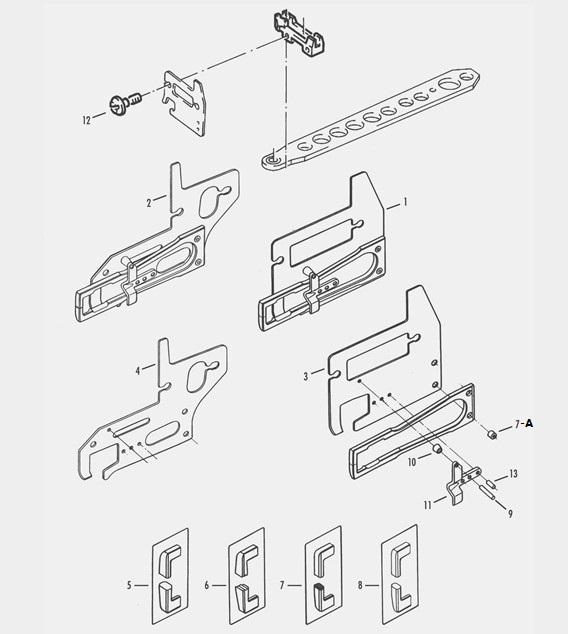

Pos.	FOBTEX No.	Parts Code	Description
1	952	911819062	PPOJECTILE FEEDER SMOOTH 2.1X3 ES,D1 L=50
1	953NQ81	911819068	PROJECTILE FEEDER GROOVED 2.1X3 1,D1,K2 L=50
1	954	911819156	PROJECTILE FEEDER L/R KNURLED 2.1X3 ES,D1
1	955	911819064	PROJECTILE FEEDER L/ UNDULATED 2.1X3 ES,D1
1	956	911819074	PROJECTILE FEEDER D2 PU 3X3.85 GROOVED L=50
1	957	911819071	PROJECTILE FEEDER SMOOTH 3X3.85 1,D12,D2
1	958	911819078	PROJECTILE FEEDER L/R KNURLED 3X3.85 ES,D12,D2
2	959	911819157	PROJECTILE FEEDER SMOOTH 2.1X3 ES,D1 P7100 L=35
2	960	911819069	PROJECTILE FEEDER GROOVED 2.1X3 ES,D1 P7100 L=35
2	961	911819159	PROJECTILE FEEDER UNDULATED 2.1X3 ES,D1 P7100 L=35
2	962	911819241	PROJECTILE FEEDER L/R KNURLED 2.1X3 ES,D1
2	963	911819347	PROJECTILE FEEDER SMOOTH 3.85X3 1,D12,D2 P7150 L=35
2	964	911819413	PROJECTILE FEEDER GROOVED 3.8X3 ES,D12,D2 P7150 L35
2	965		PROJECTILE FEEDER UNDULATED 3.8X3 ES,D12,D2 P7150 L35
2	966	911819348	PROJECTILE FEEDER L/R KNURLED 3.85X3 1,D12,D2
3	967	911119245	PROJECTILE FEEDER PLATE D1,PU L=50
3	968	911119307	PROJECTILE FEEDER PLATE D2,PU L=50
4	969	911319329	PROJECTILE FEDER PLATE D1
4	970	911319776	PROJECTILE FEEDER PLATE 1,D12,D2
5	971	911319108	PROJECTILE FEEDER GRIPPER SMOOTH ES,D1
6	972NQ22-5	911319252	PROJECTILE FEEDER GRIPPER GROOVED ES,D1,K2 2.1X3
6	973	911319166	PROJECTILE FEEDER GRIPPER UNDULATED ES, D1

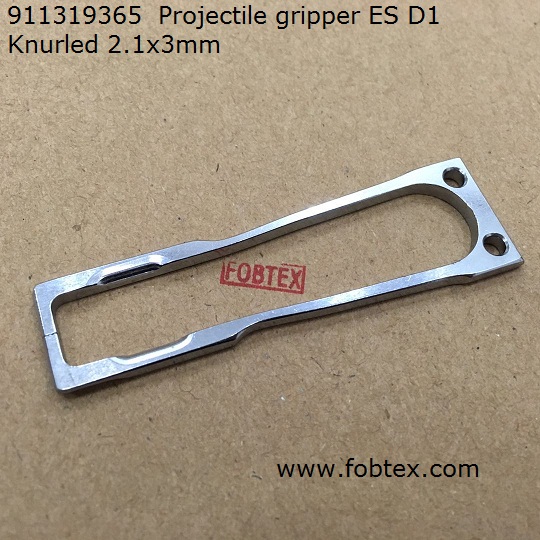

7	974	911319365	PROJECTILE FEEDER GRIPPER L/R KNURLED ES,D1 2.1x3
7	975	911319124	PROJECTILE FEEDER GRIPPER SMOOTH ES,D2
7	976	911319253	PROJECTILE FEEDER GRIPPER GROOVED ES,D2
7	977	911319587	PROJECTILE FEEDER GRIPPER WITH GROOVE ES,D2
7	978	911318352	PROJECTILE FEEDER GRIPPER KNURLED,D2
7	979	911319796	PROJECTILE FEEDER GRIPPER L/R KNURLED 3.85X3 1,D12,D2,T
7-A	980	911119135	RIVET
8	981	911319658	PROJECTILE FEEDER GRIPPER SMOOTH 3.85X3 1,D12,D2
9	982	911319406	RIVET 1.8X10.2
10	983	911119199	INTERMEDIATE RING
11	984	911119173	PROJECTILE FEEDER GUIDE PIECE
12	985	911219220	SPECIAL SCREW M5X0.5X17
13	986	911219136	SPECIAL RIVET D1
