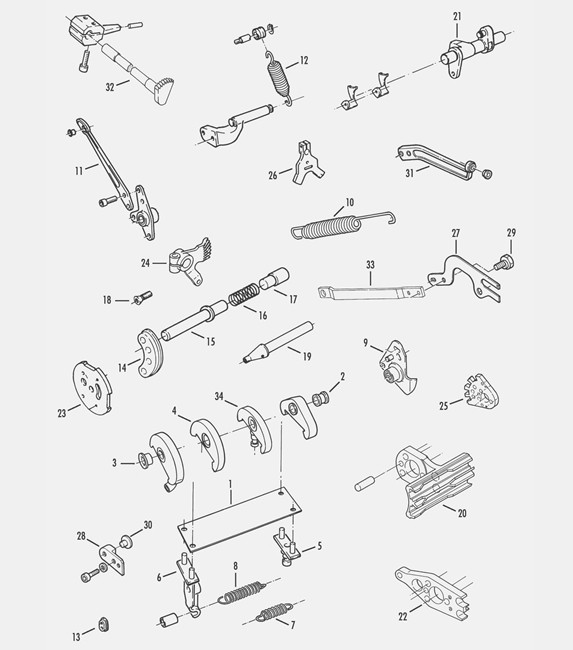

Sulzer Projectile Parts->Color Selector

Pos.
FOBTEX NO.
Parts Code
Parts Name
1
1025
911 114 926
BRAKE BAND 0.7MM
1
1026
911 114 929
BRAKE BAND 1MM
1
1027
BRAKE BAND 2MM
2
1028
911 614 008
EYELET D=8.5 911814019
3
1029
911 214 331
EYELET D=6.5 D1,D12
3
1030
911 214 332
EYELET D=5
4
1031
911 814 018
EYELET PIECE WITH EYELET D=7
5
1032
912 514 286
CLAMPING PLATE
6
1033
912 514 283
ANGLE 911414316
7
1034
911 214 133
SPRING WEAK 0.8/8.8X41.6
8
1035
911 114 537
SPRING HARD 1/9X46.5
9
1036
911 814 232
LEVER D=10 MB280-540,ES-DS,MW2,ZSD2,ZSM2,WS
10
1037
715 691 000
SPRING 2.25/19.25X150
11
1038
911 814 173
WEFT TENSIONER LEVER D1 912514208
12
1039
911 114 748
SPRING 2.8/25.6X108
13
1040
911 340 132
EYELET SEGMENT 20.5X5.8X32.5,D=4.5 D1
14
1041
911 241 120
EYELET SEGMENT D=4.5 D1/D12
15
1042
911 341 257
FILLING TUBE 5/7.1/10.8X103.4 D1 911341637
15
1043
911 341 616
FILLING TUBE 8.5/11X100 D12,D2
15
1044
740 003 000
 FILLING TUBE D=6,L=91 4,6
16
1045
911 340 122
PRESSURE SPRING 1.0/12.5X26 D21,D2
16
1046
911 141 627
PRESSURE SPRING 0.9/10.3X31 D1
17
1047
911 341 136
PRESSURE PIECE 4.5/10.5X26.45 D1 911141604
17
1048
911 341 617
PRESSSURE PIECE 8.5/12.5X32 D12,D2
18
1049
911 241 341
SPECIAL SCREW M6
19
1050
911 141 346
SELECTOR AXLE D1 911341272
20
1051
911 840 146
SELECTOR P7100,1-1,2,D1,K2
21
1052
911 840 119
SELECTOR SHAFT 1-1,2E,2S,J
22
1053
911 740 017
SELECTOR LEVER 1-1,2,D12,D2
23
1054
912 541 261
LOCKING PLATE P911,P7100,P7100M,D1
24
1055
911 141 366
TOOTHED LEVER
25
1056
917 750 670
STOP SEGMENT 4" TOOTHED PLATE FOR SELECTOR"
26
1057
715 781 000
STOP DISC 2
27
1058
740 939 000
BEND BAR 1-1,2Q
28
1059
911 840 141
STOP PIECE
29
1060
911 340 616
ECCENTER SCREW M6X20.4
30
1061
716 392 000
ARRESTING BOLT 6/12X11
31
1062
917 750 355
WEFT TENSIONING SUPPORT L=213
32
1063
911 141 129
CAM DRIVING SHAFT VS
33
1064
911 840 167
ROD
34
1065
911 814 272
CLAMPING PLATE D1
